Tree Roots, Clay Soil, and the Cracks That Appear in a Dry Summer

Every masonry contractor in Chicagoland has had this conversation. A homeowner points at a silver maple forty feet from the house and says: that tree is cracking my foundation.

Usually the tree is involved. Almost never in the way they think.

Tree roots rarely break sound masonry by force. They follow the path of least resistance, and they are not strong enough to split a sound foundation wall. What they do is far more consequential in this region — they take enormous volumes of water out of the ground, and around here the ground responds to that by shrinking. Paul Lally's Masonry has been diagnosing Chicagoland foundation movement since 1988. Free on-site estimate: (708) 448-8866.

The actual mechanism: expansive clay

Northeastern Illinois sits on glacial clay soils, and clay has a property that sand does not: it changes volume with moisture content. Wet it and it swells. Dry it and it shrinks.

That is the whole story. A foundation sitting on clay is sitting on something that moves seasonally.

Under normal conditions the movement is fairly uniform across a building, and uniform movement causes little damage — the whole house rises and settles slightly together. The damage comes from differential movement: one part of the foundation moving more than another.

And the most reliable way to create differential movement is to dry out the soil under one portion of the building while leaving the rest alone. Which is precisely what a large tree on one side of a house does.

How a tree produces a crack without touching the wall

A mature tree can transpire a very large volume of water on a hot day. It draws that water from a root zone that typically extends well beyond the canopy — frequently further from the trunk than homeowners assume.

If that root zone overlaps the soil supporting one corner or one elevation of your foundation:

1. The tree dries that soil, especially through a hot, low-rainfall summer
2. The clay in that zone shrinks
3. The foundation over it settles slightly more than the rest of the building
4. The masonry above has to accommodate the difference, and masonry accommodates by cracking
5. Autumn rain rehydrates the clay, it swells, and the crack partially closes

That seasonal open-and-close is the signature. A crack that visibly widens in a dry August and narrows by spring is a soil-moisture crack, not a weathering one.

The warning signs, and what each one means

Step cracks

Diagonal cracking that steps through the mortar joints. The classic movement indicator. Direction matters — they tend to point back toward the settling area.

Cracks that are offset

If one side of a crack has shifted out of plane relative to the other, that is displacement rather than simple opening, and it raises the seriousness considerably.

Cracks that change with the season

Open in late summer, narrower in spring. Strongly suggests soil moisture rather than a one-time settlement.

Doors and windows racking

Doors that stick seasonally, windows that bind, visible out-of-square in frames. The structure is moving, not just the masonry.

Sloping floors

Interior evidence that the differential movement is real and significant.

Cracks radiating from opening corners

Openings are weak points, so movement often expresses itself there. But cracking above an opening can equally come from a corroding steel lintel expanding — an entirely different problem with an entirely different repair. Getting this wrong is common and expensive.

Bowing or bulging walls

A different and more urgent category — this is lateral pressure, not settlement, and it needs a structural assessment promptly.

Where roots genuinely are the problem

Having spent this article arguing that roots rarely break sound masonry, it is only fair to name the cases where they really do cause trouble.

Into an existing crack. A root will happily grow into a crack that already exists, and as it thickens it can widen that crack. This is opportunistic rather than causal — the crack came first — but it is real, and it means an unrepaired crack near a tree deserves attention sooner.

Old, weak, or dry-laid masonry. A nineteenth-century rubble or dry-laid stone foundation, or a badly deteriorated brick wall with no mortar left in the joints, has far less to resist with. On that kind of wall, root intrusion can genuinely displace material.

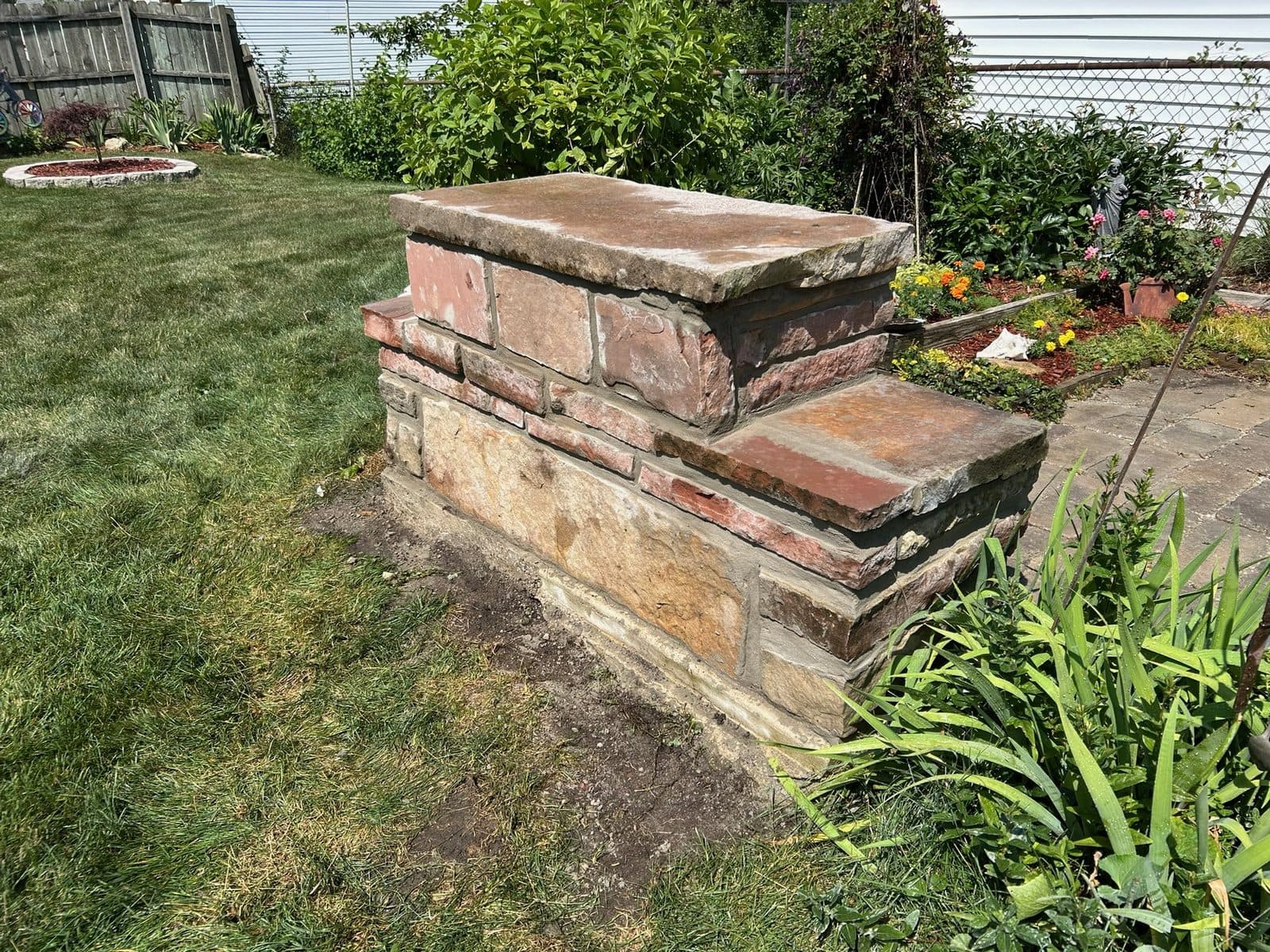

Shallow structures. Garden and retaining walls, garage aprons, walks, stoops, and freestanding piers sit on little or no proper footing. Roots lift those routinely, and that is direct mechanical damage.

Drain tile and sewer lines. Roots seek water and get into clay tile joints — which then backs up drainage beside the foundation and creates the saturation problem from the other direction.

So the honest framing is: on a sound foundation wall, blame the soil moisture. On a garden wall, a walk, or a wall that has already failed, the roots may well be doing the work directly.

Reading the pattern across the building

One crack tells you relatively little. The pattern across the whole structure is what a mason or an engineer actually reads.

Concentrated at one corner — classic differential settlement, and worth looking at what is near that corner: a large tree, a downspout, a drive, a bad grade.

Along one whole elevation — suggests something affecting that side broadly, such as the tree line, the sun exposure drying that side harder, or a drainage condition running the length of the wall.

Mirrored on both sides of the building — more likely to be uniform seasonal movement, which is usually less alarming.

Radiating from every opening — points toward the openings themselves, so check the lintels before concluding the foundation moved.

Worst at the middle of a long wall — can indicate a different mechanism entirely, including lateral pressure, and deserves prompt assessment.

This is also why we ask to see all four elevations rather than the one the homeowner called about. The crack that gets noticed is rarely the one that explains the building.

Weathering vs. movement: the distinction that decides everything

Weathering (masonry repair)	Movement (engineer first)
Mortar sandy, receded, crumbling	Mortar joint split cleanly, mortar still hard
Damage distributed by exposure	Damage concentrated in one area or one corner
Worst at base course, parapet, chimney	Follows a diagonal line through the wall
Brick faces spalling	Brick cracked through, or courses offset
No change in doors, windows, floors	Doors racking, floors sloping
Stable over years	Widening or seasonally cycling

The left column is our work. The right column needs a structural engineer's assessment before any masonry repair happens — and we will tell you so rather than repointing over a wall that is still moving.

Why "just cut the tree down" is not automatically the answer

This is the part that surprises people, and it is worth stating plainly: removing a large tree can cause its own problems.

If a mature tree has been drawing moisture out of clay beside a foundation for thirty years, that soil has been in a chronically drier, more compressed state for a long time. Remove the tree and the soil stops being dewatered. It rehydrates. Clay that rehydrates swells — and swelling soil under a foundation can produce heave, which is upward movement, and which can crack masonry just as effectively as settlement did.

So the honest answer is that tree removal near a structure on clay is a decision for an arborist and, where the building has already moved, a structural engineer. It is not a DIY call, and it is not automatically an improvement.

What actually helps

Consistent soil moisture is the goal. Not wet, not bone dry — consistent. Wild seasonal swings are what move foundations.

• Correct the drainage so the soil beside the foundation is not alternately soaked and parched. Downspout extensions and proper grade do more here than people expect, for the reasons covered in our guide to downspouts, grading and masonry damage.
• Avoid dramatic watering changes right against the foundation.
• Root barriers can be appropriate in some situations — an arborist's call, installed properly, and not a universal fix.
• Manage the canopy rather than removing the tree, where an arborist supports it.
• Monitor before acting. A crack that has been stable for fifteen years is a different proposition from one that opened last summer.

Monitoring a crack properly

Before anyone repairs anything, know whether it is live:

1. Mark both ends with a pencil line and write the date
2. Measure the width at a marked point and record it
3. Photograph it against a ruler, in consistent light
4. Repeat seasonally — late summer and early spring are the informative moments in a clay-soil climate
5. Record what else changes — doors, windows, floors

A year of that data tells you more than any single inspection, and it tells a structural engineer a great deal if one becomes necessary.

When the masonry repair does happen

Once movement has been assessed and, where possible, the cause addressed, the masonry work follows the usual rules:

Cut out to sound material. Repointing that stops short of sound mortar is a cosmetic skin.

Match the mortar — and never exceed the brick in hardness. On Chicago's soft common brick, greystones, two-flats and workers' cottages, that means a lime-rich, low-Portland mix. A hard modern mortar on soft historic brick pushes every bit of future movement into the brick faces and spalls them, which is how a well-intentioned crack repair becomes a wall-wide problem.

Match colour, sand, texture, and joint profile so the repair disappears.

Replace cracked units rather than filling them, where the brick itself has fractured through.

Expect to revisit a live crack. If movement is ongoing and cannot be fully arrested, the honest plan is monitoring and periodic maintenance rather than a promise that one repointing ends it.

What drives the cost

• Whether a structural engineer is required first
• Extent of cracking and how much wall is affected
• Whether units are cracked through or only the joints have opened
• Height and access — grade level versus an upper story needing staging
• Match difficulty for brick and mortar on older housing stock
• Drainage corrections folded into the scope
• Whether the movement is active, which changes the plan from a one-time repair to managed maintenance
• Season and curing conditions

We do not price movement cracks over the phone, because the diagnosis is most of the value. The on-site assessment is free — (708) 448-8866.

DIY vs. hiring a pro

Monitoring is genuinely a homeowner job, and a valuable one. Mark it, measure it, photograph it, check it seasonally. That record is useful to everyone who looks at the house afterward.

Diagnosis is not. The three things that go wrong when homeowners self-diagnose:

• Mistaking a lintel problem for settlement — cracking above an opening from corroding steel looks superficially similar and needs completely different work
• Filling a live crack — which relocates it rather than fixing it
• Removing a tree on instinct — with the heave risk described above

And repointing itself, on historic soft brick, is a mortar-specification problem before it is a labour problem.

Chicagoland context

The region stacks three factors that make this common here.

The clay. Expansive glacial soils across Cook, DuPage, and Will County mean seasonal soil movement is normal, not exceptional.

Mature canopy. The older suburbs and the city's bungalow and greystone neighbourhoods have large trees planted close to houses, often on parkways and in small front yards.

Freeze-thaw on top. Once a crack opens, it admits water, and Chicagoland's dozens of annual freeze-thaw cycles then work on the joint from inside — so a movement crack becomes a weathering problem as well if it is left open through a winter.

Related services

• Foundation masonry repair — deteriorated and cracked foundation walls
• Tuckpointing and repointing — cut to sound depth in compatible mortar
• Brick repair and brick replacement — units cracked through
• Lintel replacement — the other cause of cracking above openings
• Masonry restoration — historic stock needing soft-mortar work

The short version

Roots do not usually break foundations. Clay does — because trees dry it, drought shrinks it, rain swells it, and a foundation sitting on soil that changes volume unevenly will crack the masonry above it.

So read the crack before you fill it. Is it widening? Offset? Seasonal? Are the doors racking? Those answers decide whether you need a mason, an engineer, an arborist, or simply a downspout extension and a year of patient monitoring.
